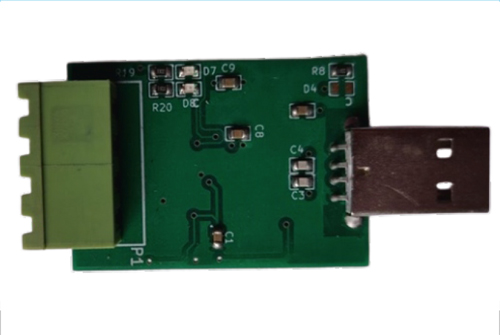

USB to RS485 Converter Card

Features:
Easy plug & play installation and RS 485 device connection
· Works with USB 1.1 & 2.0 Host and Hub ports
· Industry Standard FTDI chip set & device drivers for maximum compatibility
· Installs as a standard Windows COM port
· COM port number can be changed to any available COM port number, including COM1 to COM4,
to support HyperTerminal, or any other serial communications software application running in Windows
· Visual indication of Tx and Rx traffic via LEDs in the transparent USB connector. IA/TIA -485 communication interface with low power requirements
· UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
· ESD Protection for RS -485 I/O's ±15kV Human Body Model.
· The drivers are avai lable to download for free from www.ftdichip.com

Project Name

    • 1. All parameters NOT specially mentioned are measured at typical input, rated load and 25Deg.C ambient temp.
      2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uF & 47uF parallel capacitor
      3. Tolerance : includes set up tolerance, line regulation & load regulation.
      4. Specifications are subject to change without prior notice due to constant improvement in design & technology.
