Earth Monitoring System

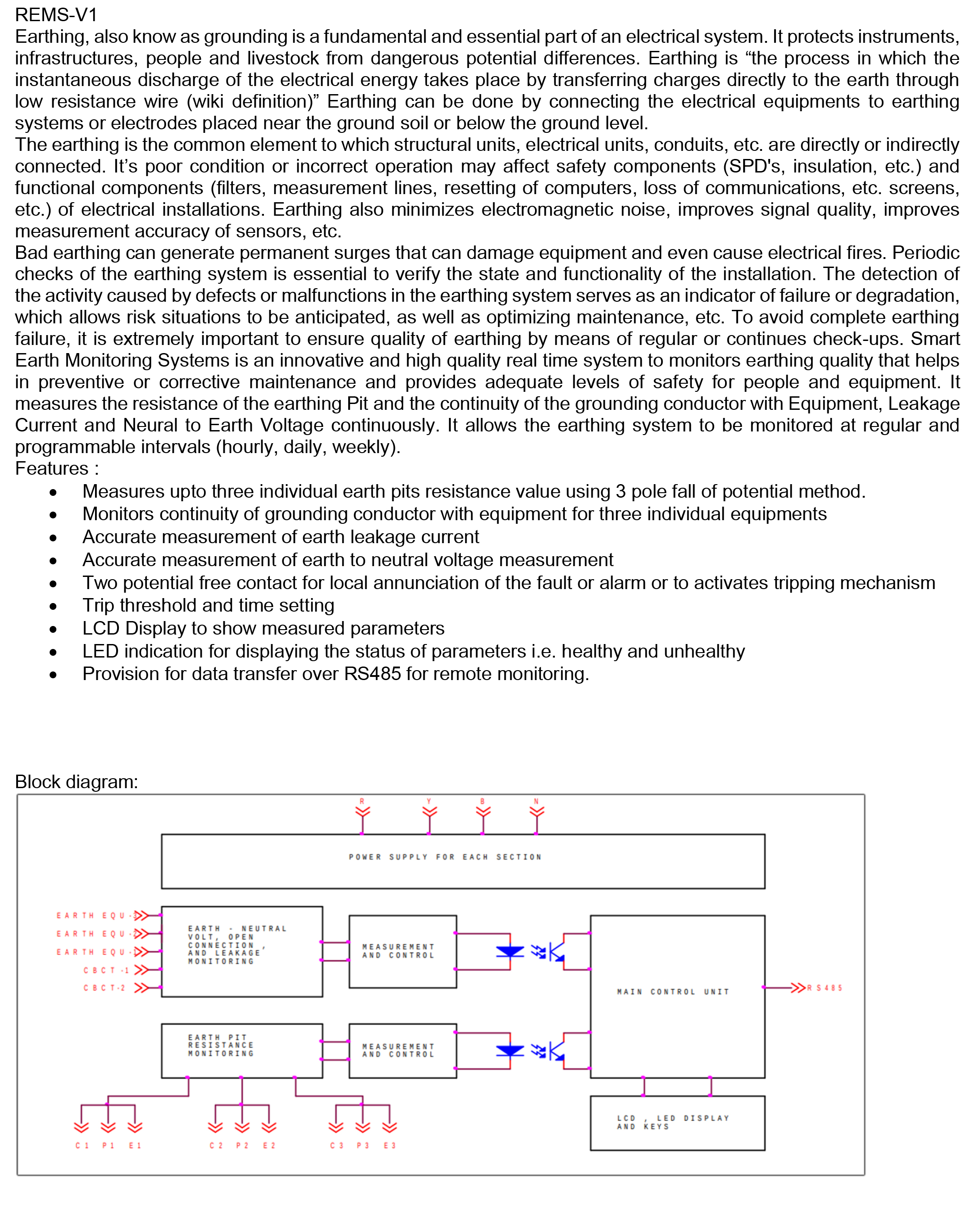

Earthing, also know as grounding is a fundamental and essential part of an electrical system. It protects instruments, infrastructures, people and livestock from dangerous potential differences. Earthing is “the process in which the instantaneous discharge of the electrical energy takes place by transferring charges directly to the earth through low resistance wire (wiki definition)” Earthing can be done by connecting the electrical equipments to earthing systems or electrodes placed near the ground soil or below the ground level.

Project Name

    • 1. All parameters NOT specially mentioned are measured at typical input, rated load and 25Deg.C ambient temp.
      2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uF & 47uF parallel capacitor
      3. Tolerance : includes set up tolerance, line regulation & load regulation.
      4. Specifications are subject to change without prior notice due to constant improvement in design & technology.
