Lithium Power Backup

Home Products
Project Name

LUPS PP is robust 12VDC 8AH and 5VDC 2AH with 10AH battery Backup unit

Features:
• Wide AC Input range

• Withstand 470VAC continuous LINE to NEUTRAL

• 12V and 5V redundant output

• Redundant and load sharing charger

• User -friendly LED indications

• Fixed Trip Delays

• Fixed trip setting for Under voltage / Over voltage

• Inbuilt 12V lithium battery for long lasting backup

• Protections: Short circuit / Over load / Under voltage

• 100% Full load burn in test

• High reliability

• RS232 interface with external devices

• Optional AC inverter for low power consumption devices

• Application : Retail Automation, Petrol Pump Automation CCTV Camera backup, DC power source etc.

Project Name

Project Name

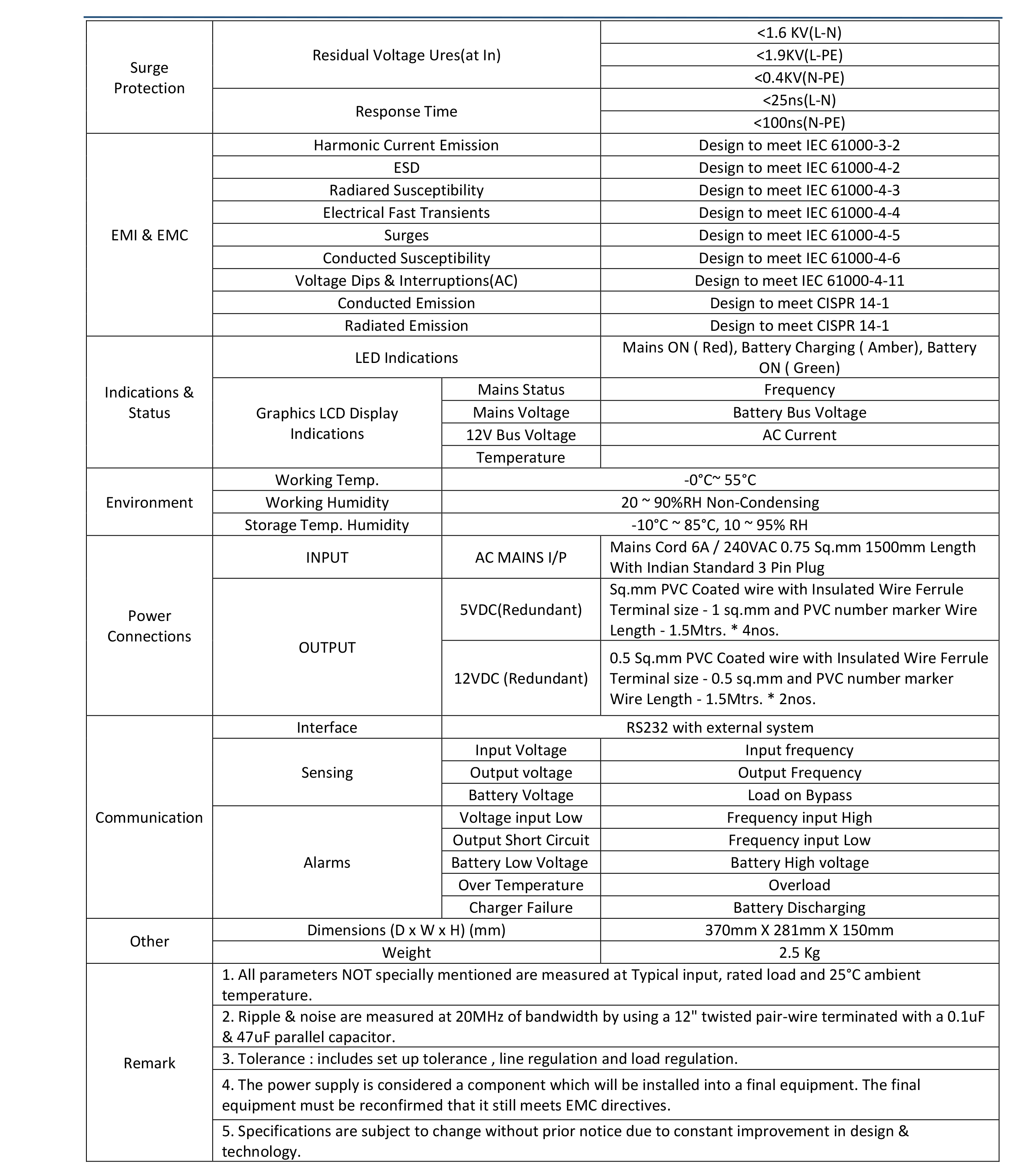

    • 1. All parameters NOT specially mentioned are measured at typical input, rated load and 25Deg.C ambient temp.
      2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uF & 47uF parallel capacitor
      3. Tolerance : includes set up tolerance, line regulation & load regulation.
      4. Specifications are subject to change without prior notice due to constant improvement in design & technology.
