SMPS

Home Products
Project Name

SMPS

Features:

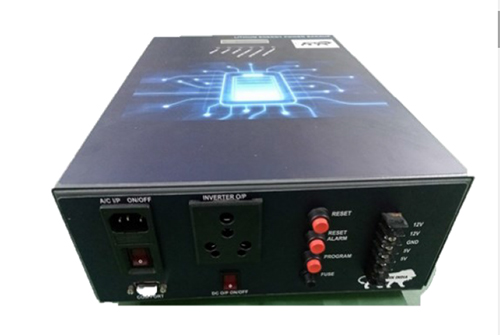

SMPS: LiBBU60W, is robust 12VDC 5AH with battery Backup unit.

• Wide AC I/P supply range up to 400VAC
• Built with latest technology suitable for industrial applications.
• Automatic change over on battery
• Protections: Short circuit / over load
• Inbuilt 11.1V 2.0AH Lithium Ion Battery
• Heat dissipation by naturally through enclosure body
• 100% full load burn

Project Name

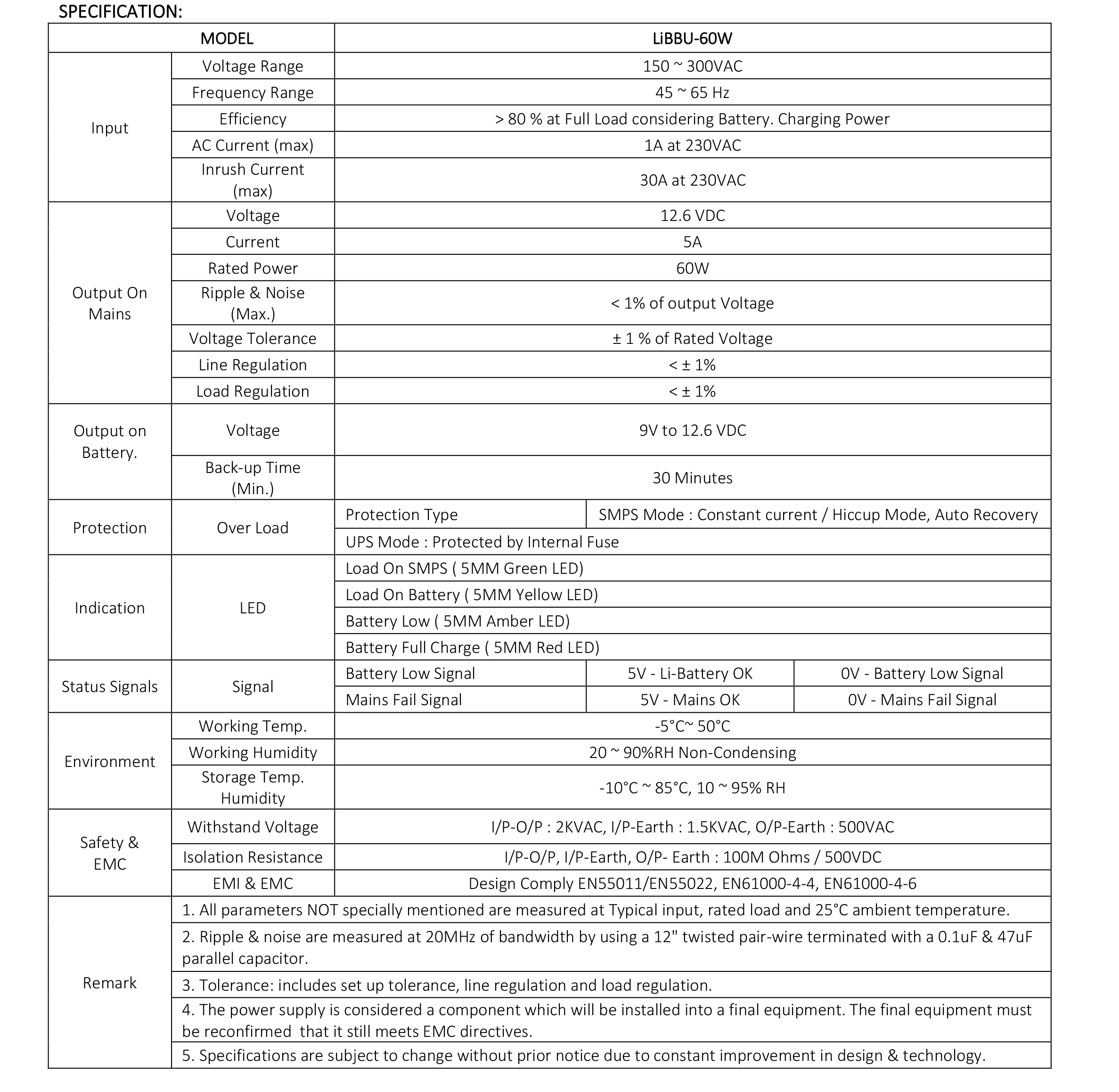

    • 1. All parameters NOT specially mentioned are measured at typical input, rated load and 25Deg.C ambient temp.
      2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uF & 47uF parallel capacitor
      3. Tolerance : includes set up tolerance, line regulation & load regulation.
      4. Specifications are subject to change without prior notice due to constant improvement in design & technology.
