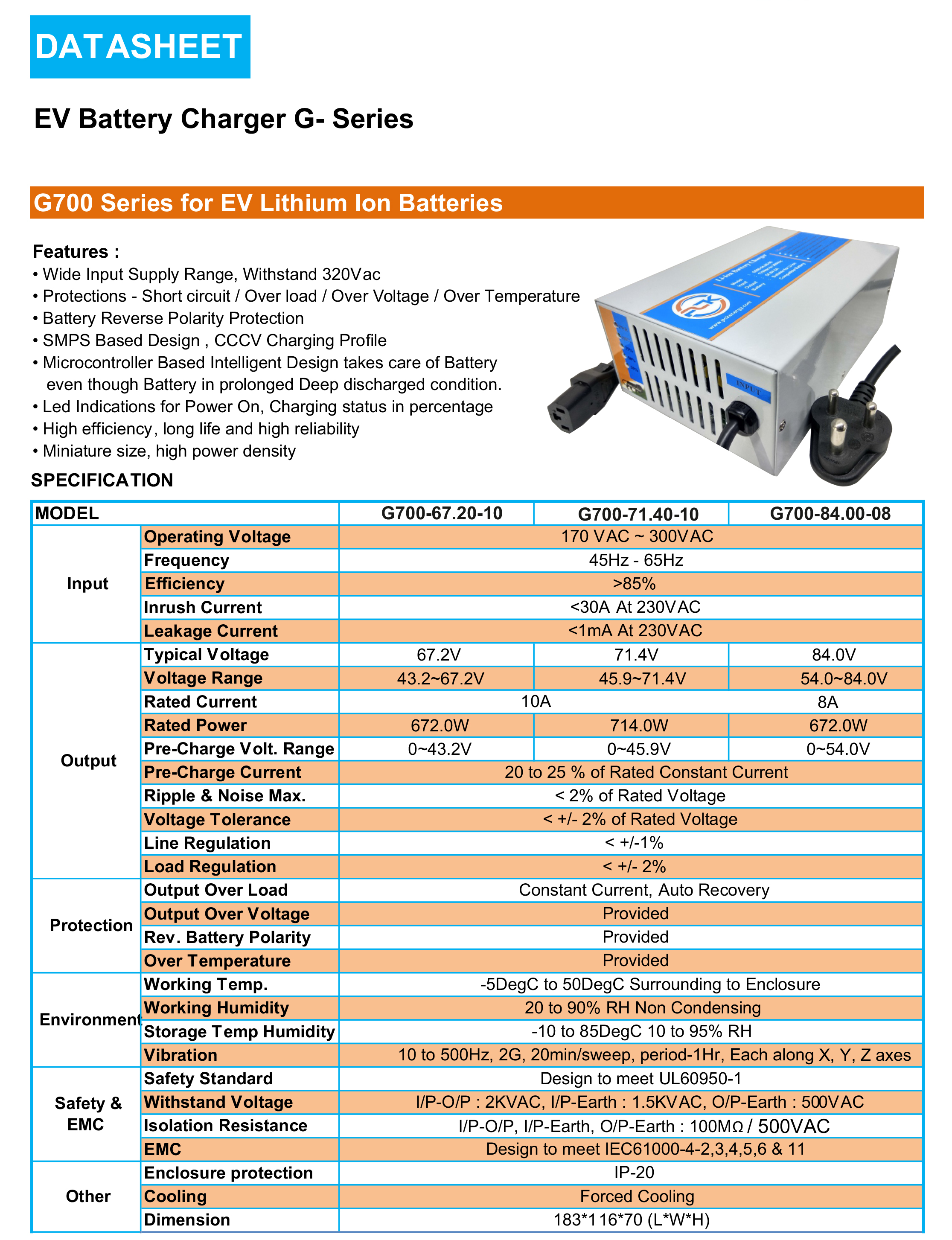

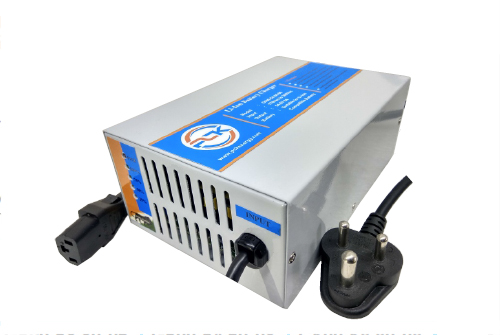

G700 Series for EV Lithium Ion Batteries

G700 Series for EV Lithium Ion Batteries

Features:
Wide Input Supply Range, Withstand 320Vac
• Protections - Short circuit / Over load / Over Voltage / Over Temperature
• Battery Reverse Polarity Protection
• SMPS Based Design , CCCV Charging Profile
• Microcontroller Based Intelligent Design takes care of Battery even though Battery in prolonged Deep discharged condition.
• Led Indications for Power On, Charging status in percentage
• High efficiency, long life and high reliability
• Miniature size, high power density

Project Name

Project Name

Project Name

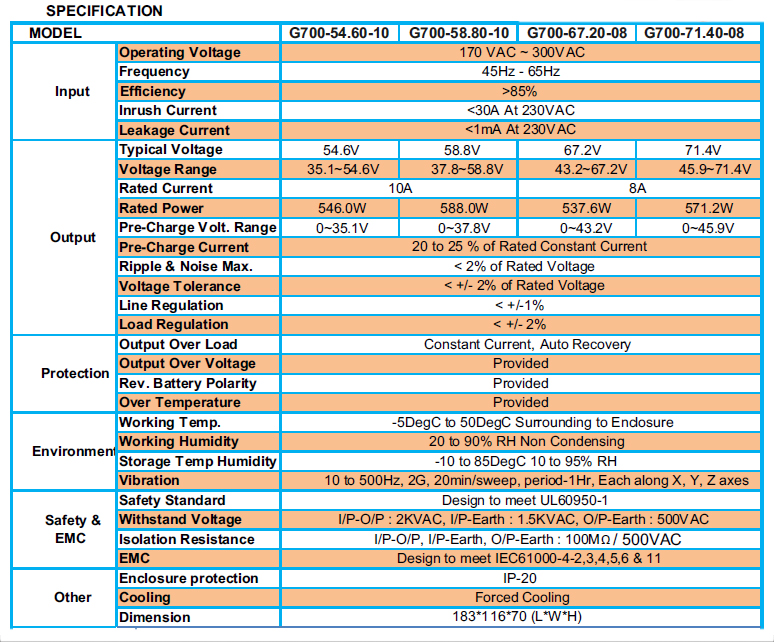

    • 1. All parameters NOT specially mentioned are measured at typical input, rated load and 25Deg.C ambient temp.
      2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uF & 47uF parallel capacitor
      3. Tolerance : includes set up tolerance, line regulation & load regulation.
      4. Specifications are subject to change without prior notice due to constant improvement in design & technology.
