Door Sensor

Home Products
Project Name

Door Sensor

Features:
Principal Of Operation:

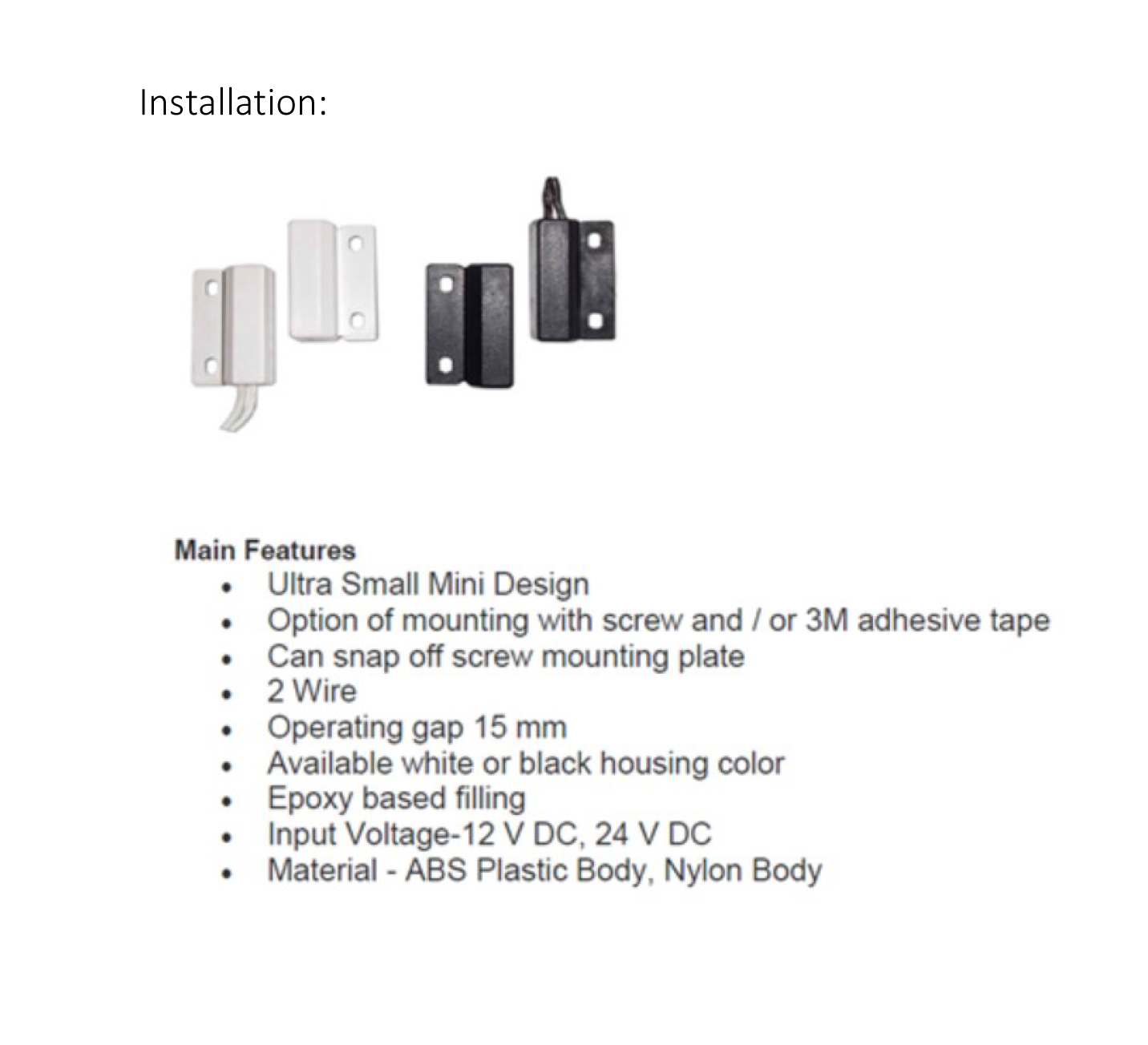

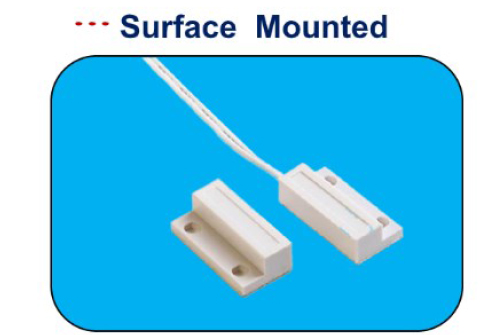

27 * 14 * 8mm mini stick-on contact with flange.
• ABS shell( anti-fire available).
• Side leads with 1007-#24AWG-250 length.
• Special leads available.
• Switches or magnets available separately.
• Sensing gap can be customized.
• Colors: White, Brown
• Black on request.

Project Name

    • 1. All parameters NOT specially mentioned are measured at typical input, rated load and 25Deg.C ambient temp.
      2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uF & 47uF parallel capacitor
      3. Tolerance : includes set up tolerance, line regulation & load regulation.
      4. Specifications are subject to change without prior notice due to constant improvement in design & technology.
