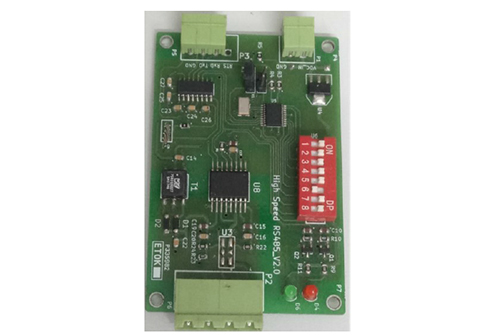

Controlled Highspeed Isolated RS485 Converter

Features:
Compatible with RS232/RS485 standard, converting the RS232 signal into balanced differential RS485 signal:

• Stable transmission on rate of 300~115200bps
• Integrated Isolated power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminals.
• Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning proof & anti-electrostatic.
• 5V~35V DC wide range input, suits different application situations • UART interface support for baud rate, 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity by using selection switch.
• 600W lightning proof and surge-suppress, 15KV ESD

Project Name

    • 1. All parameters NOT specially mentioned are measured at typical input, rated load and 25Deg.C ambient temp.
      2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uF & 47uF parallel capacitor
      3. Tolerance : includes set up tolerance, line regulation & load regulation.
      4. Specifications are subject to change without prior notice due to constant improvement in design & technology.
